DC Fast CHAdeMO to GBTAdapter

Category:
Adapters
Price:
$800.00
{{variant.name}}:
{{opt.name}}
{{opt.value ? '' : opt.name}}
{{opt.value ? '' : opt.name}}
Description
Product description

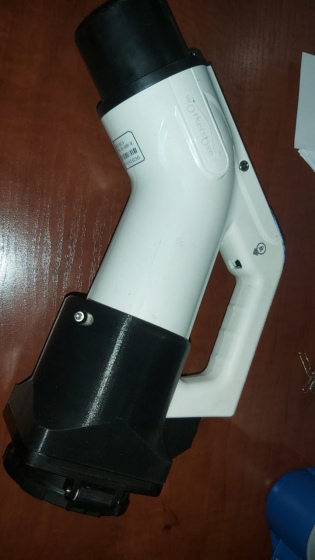

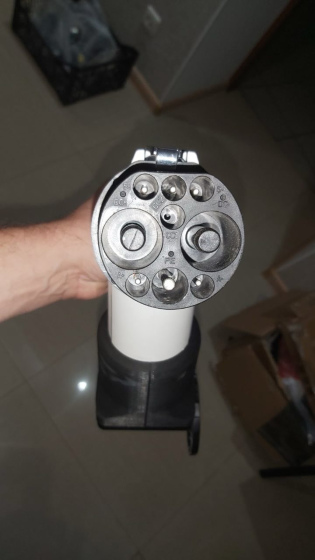

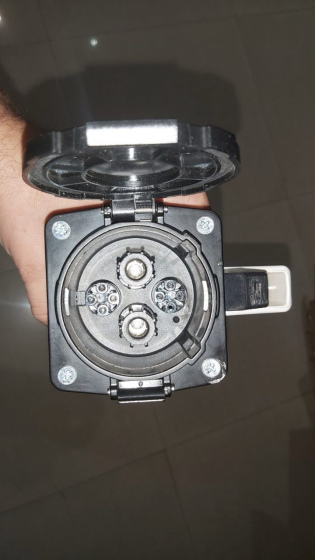

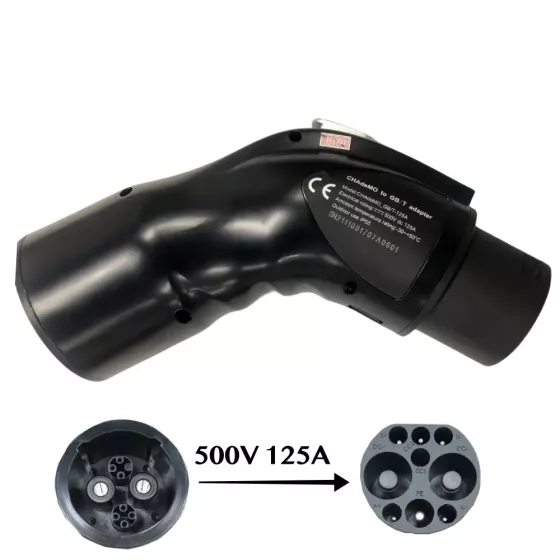

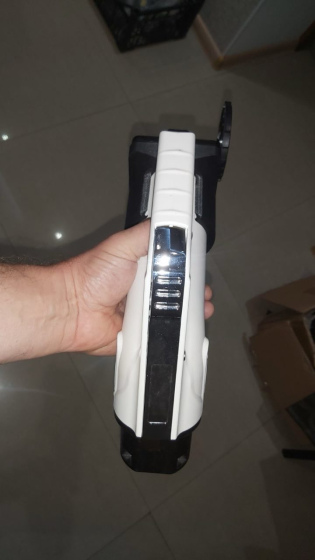

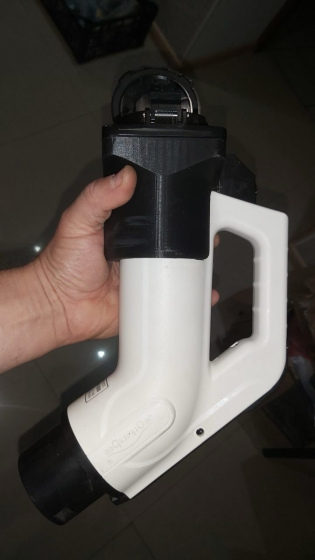

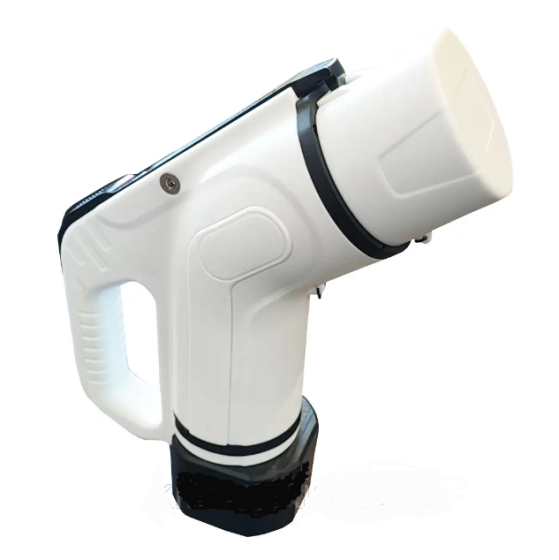

GBT TO CHAdeMO EV Charger Adapter
Nominal current:
125A DC Max
Application
End of vehicle, charging pile, charging pile to end of vehicle
Working voltage:
500 VDC
Withstands voltage:
2000 B
Protection class
IP54
Contact pin:
Copper alloy, silver plated
Body material
Thermoplastic
Durability
> 10000 times
Operating temperature
From -30 °C to + 50 °C
Storage temperature
From -40 °C to + 85 °C


 Product Parameters

Use to connect the charging cable on the GBT charging station to a CHAdeMO vehicle that has been turned on for DC charging.
1. Compliance with GBT and CHAdeMO provisions and requirements.
2.Shell material:thermoplastic(insulator flammability UL94 V0)
3. Contact pin: copper alloy, silver or nickel plated
4. Sealing Gasket: rubber or silicone rubber
5. Excellent protection, IP54 protection rating
6. Using the screwless riveting process, the appearance is beautiful
